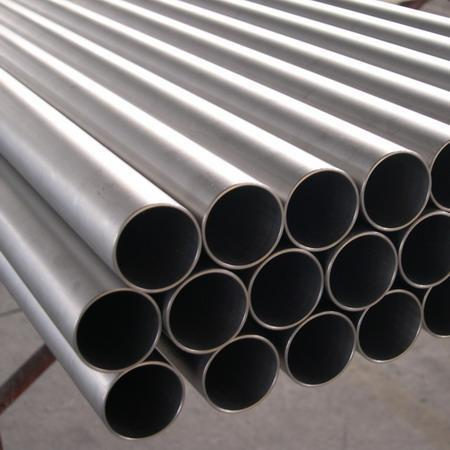

Thin-walled seamless carbon steel pipe represents a specialized category of industrial piping that combines structural integrity with weight efficiency. These precision-engineered products serve critical roles across multiple industries where material optimization is essential for performance and cost-effectiveness.
What Defines Thin-Walled Seamless Carbon Steel Pipe?
Thin-walled seamless carbon steel pipe is characterized by its wall thickness to diameter ratio, typically where the wall thickness divided by the outer diameter is less than 0.05. These pipes are manufactured through seamless processes including cold rolling, cold drawing, or hot extrusion techniques that eliminate welded seams.
The absence of welds creates a uniform structure with consistent mechanical properties throughout the entire pipe body. This uniformity makes thin-walled seamless pipes particularly suitable for applications requiring precise dimensional tolerances, reduced weight, and superior surface quality.
Key Characteristics and Advantages
Weight Efficiency
The hollow structure of thin-walled seamless carbon steel pipes provides excellent weight-to-strength ratios compared to solid steel components. While maintaining comparable bending and torsional resistance, these pipes significantly reduce overall material weight—a critical advantage in aerospace, automotive, and other weight-sensitive applications.
Structural Integrity
Through careful material selection and advanced processing techniques, thin-walled seamless pipes deliver impressive structural performance. They effectively withstand considerable pressure and tensile forces, meeting the requirements of diverse engineering applications from simple structural supports to complex fluid transport systems.
Dimensional Precision
Cold-rolled or cold-drawn thin-walled seamless pipes feature exceptional dimensional accuracy and wall thickness uniformity. This precision is essential for applications with strict tolerance requirements, such as instrumentation components, precision machinery parts, and high-performance mechanical systems.
Surface Quality and Corrosion Resistance
While not inherently as corrosion-resistant as stainless steel alternatives, thin-walled carbon steel pipes can be enhanced through various surface treatments including galvanization, painting, or specialized coatings. These treatments enable their use in moderately corrosive environments while extending service life.
Technical Specifications and Parameters
Dimensional Range
Outer Diameter: 6mm to 820mm, with selection based on application requirements
Wall Thickness: 0.25mm to 15mm, determined by pressure rating and structural needs
Standard Lengths: 6m, 9m, and 12m, with custom lengths available for specific project requirements
Application-Specific Sizing
Smaller diameter pipes (approximately 20mm) are commonly utilized in precision mechanical components and instrumentation. Larger diameters (300mm and above) serve in fluid transport systems for industrial processes. Wall thickness selection depends on operating pressure, with thinner walls (approximately 3mm) for low-pressure applications and thicker walls (10mm+) for high-pressure petrochemical environments.
Manufacturing Process
Raw Material Selection
Production begins with high-quality carbon steel selection, commonly grades 10# and 20#. These materials undergo rigorous chemical composition and mechanical property verification to ensure compliance with applicable standards including ASTM A106, ASTM A53, and API 5L specifications.
Heating and Piercing
Solid steel billets are heated to 1100°C-1200°C to achieve optimal plasticity. The heated billets enter piercing machines where high-speed rotating rollers and mandrels create the initial hollow form. This critical step establishes the fundamental pipe structure and internal cavity.
Rolling and Forming
The rough tube undergoes either hot rolling or cold rolling processes:
Hot Rolling: Performed at elevated temperatures to extend the tube and reduce wall thickness to achieve target dimensions
Cold Rolling/Drawing: Conducted at ambient temperature by pulling or rolling the tube through precision dies, resulting in superior dimensional accuracy and surface finish
Heat Treatment
Post-rolling heat treatment enhances mechanical properties through processes like normalizing and tempering. These treatments optimize the microstructure to achieve the required strength, ductility, and hardness specifications.
Quality Inspection
Comprehensive quality control measures include dimensional verification using precision instruments (micrometers, calipers), hydrostatic testing for pressure integrity, non-destructive examination methods (ultrasonic testing, eddy current inspection), and material certification to applicable standards.
Industrial Applications
Precision Machinery
Thin-walled seamless carbon steel pipes serve critical functions in hydraulic systems, bearing sleeves, and precision mechanical assemblies where dimensional accuracy and consistent performance are essential.
Automotive Components
The automotive industry utilizes these pipes for fuel lines, brake fluid transport, and exhaust system components where weight reduction contributes to overall vehicle efficiency and performance.
HVAC and Consumer Products
Applications include air conditioning condenser tubes, heat exchangers, and internal components for electronic devices and appliances where thermal transfer efficiency is paramount.
Medical and Precision Equipment
Specialized applications include structural components for imaging equipment, instrument frames, and support systems where dimensional stability and cleanliness are critical requirements.
Architectural and Decorative Applications
The aesthetic qualities and structural performance of thin-walled seamless pipes make them ideal for handrails, display structures, lighting fixtures, and other architectural elements.
Selection Considerations and Best Practices
Application-Based Selection
Thin-walled tubes are ideal for lightweight applications requiring precision manufacturing and moderate pressure ratings (typically below 10 MPa). For high-pressure applications exceeding 30 MPa, thick-walled alternatives should be considered with appropriate engineering calculations.
Environmental Factors
When used in humid or corrosive environments, appropriate surface treatments including galvanization, epoxy coatings, or polymer wrapping should be specified to prevent premature deterioration.
Pressure Rating Verification
Always verify that the selected wall thickness provides adequate pressure containment with appropriate safety factors according to applicable codes and standards such as ASME B31.3 for process piping or relevant industry specifications.
Conclusion
Thin-walled seamless carbon steel pipes represent an optimal balance of engineering performance and material efficiency across numerous industrial applications. Their combination of weight reduction, structural integrity, and manufacturing precision makes them indispensable components in modern industrial systems.
The rigorous production process—from raw material selection through multiple forming operations to comprehensive quality inspection—ensures these products meet exacting standards for critical applications. As manufacturing technologies continue to advance, thin-walled seamless carbon steel pipes will maintain their essential role in industrial infrastructure, transportation systems, and precision mechanical applications.
