Oil tubing is essential in the oil and gas industry, facilitating the extraction and transport of oil and gas. Without it, many operations would be inefficient and costly.
In this post, we’ll explore what oil tubing is, its types, materials, and applications. You’ll also learn about its crucial role in modern drilling operations.
Understanding the Basics of Oil Tubing

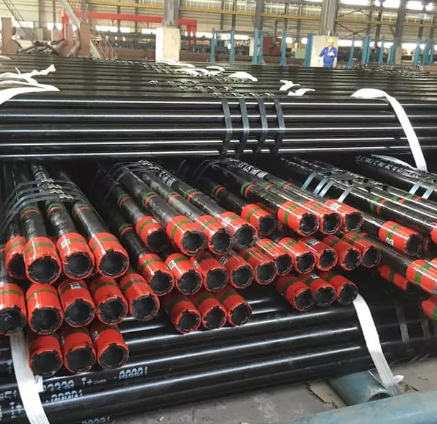

What is Oil Tubing?
Oil tubing is a specialized pipe that is primarily used in the oil and gas industry to transport hydrocarbons from the wellbore to the surface. Unlike other piping systems, such as casing pipes, which are used to line the walls of the well, oil tubing serves as the direct conduit for oil and gas. Tubing is typically inserted into the well after the casing has been installed, and it is designed to handle the pressures and corrosive materials found in deep reservoirs.
Typically, oil tubing is made from materials that can endure extreme pressure, temperature variations, and corrosive environments. Oil tubing also ensures the safe and efficient flow of fluids, reducing the risk of leaks and contamination. This type of tubing is essential for well completion and production, allowing operators to extract resources more effectively.
Why is Oil Tubing Important?
The importance of oil tubing cannot be overstated. It allows the extraction of oil and gas from the well in a controlled and efficient manner. Without it, oil and gas would not be able to flow from the deep well to the surface facilities, making it impossible to process these resources.
In addition to transporting fluids, oil tubing is vital for ensuring the well’s safety and structural integrity. By maintaining the flow of hydrocarbons in a regulated manner, oil tubing contributes significantly to operational efficiency. Moreover, oil tubing helps minimize downtime and prevents costly damage by withstanding harsh conditions that would otherwise cause failures in less durable materials.
Types of Oil Tubing and Their Applications

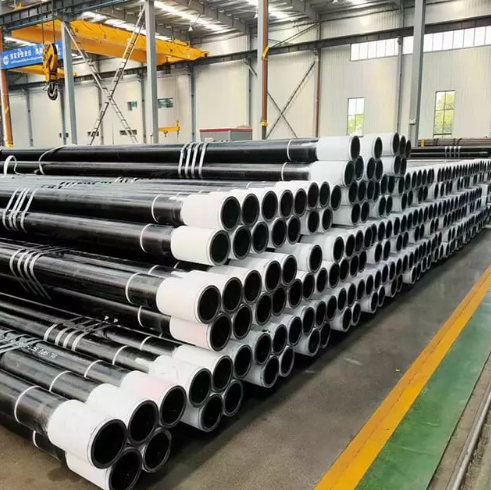

Different Types of Oil Tubing
There are different types of oil tubing designed to meet the needs of various applications and environments in the oil and gas industry. The two main categories of oil tubing include seamless tubing and welded tubing, both of which have distinct properties and are chosen based on specific requirements.
Seamless Oil Tubing: As the name implies, seamless tubing is produced from a solid billet of metal that is then heated and formed into a tube. The absence of seams or welds makes seamless tubing stronger, more reliable, and able to withstand higher pressures. This type of oil tubing is typically used in more demanding conditions where strength and resistance to corrosion are paramount.
Welded Oil Tubing: In contrast, welded tubing is formed by welding a flat strip of metal into a tube shape. While it may not be as strong as seamless tubing, welded tubing is still a practical solution for less demanding applications. It is often more affordable and sufficient for transporting fluids under moderate pressure conditions.
Oil Tubing vs. Casing: What’s the Difference?
While oil tubing and casing pipes are often used together in drilling operations, they serve different purposes. Oil tubing is designed for fluid transport, while casing is used to line the wellbore, providing structural support and ensuring that the well does not collapse under pressure.
Oil Tubing: Smaller in diameter (typically ranging from 1 ½ to 4 ½ inches), oil tubing is designed to withstand pressure and flow hydrocarbons from the wellbore to the surface. It is critical for production operations.
Casing: Casing pipes are larger in diameter (ranging from 4 ½ to 20 inches) and are installed first to provide the structural integrity of the well. Casing prevents the wellbore from collapsing and isolates different layers of the reservoir from one another.
Here is a quick comparison table to better illustrate the differences:
| Feature | Oil Tubing | Casing |
| Primary Purpose | Fluid transport | Structural support for the wellbore |
| Size | Smaller diameter (1 ½ to 4 ½ inches) | Larger diameter (4 ½ to 20 inches) |
| Thickness | Thinner, typically between 0.10 and 0.25 inches | Thicker, between 0.25 and 1 inch |
| Material | Steel, stainless steel, alloys | Steel, high-strength alloys |
| Connection Method | Threaded or welded | Threaded |
Common Applications of Oil Tubing
Oil tubing is used across a range of oil and gas operations. Its primary function is to transport oil, gas, and other fluids from the reservoir to the surface for processing. Some of the most common applications include:
Well Drilling and Completion: After the wellbore is drilled, oil tubing is inserted into the well to allow for the flow of oil and gas to the surface. The tubing strings are typically connected to a pump jack or other lifting mechanism.
Production Operations: Oil tubing is integral to production operations, as it facilitates the continuous flow of extracted fluids to surface processing facilities. By maintaining the flow, oil tubing ensures that operations are efficient and uninterrupted.
Offshore and Onshore Projects: Whether the operation is on land or at sea, oil tubing is essential. Offshore projects require oil tubing that can withstand harsh environmental conditions such as corrosion from seawater, while onshore projects may focus on managing higher pressures or other specific challenges.
Key Characteristics of Oil Tubing
Diameter and Wall Thickness
The diameter and wall thickness of oil tubing are critical characteristics that influence its strength and efficiency in transporting fluids. The outside diameter (OD) is a key factor in determining how much fluid the tubing can carry. In high-pressure environments, thicker walls are necessary to prevent the tubing from bursting.
The wall thickness directly impacts the tubing’s ability to withstand pressure, especially in deeper wells. Tubing with a thicker wall is typically used for deep wells or wells in high-pressure environments.
Small Diameter Tubing: Typically used in shallow wells or less demanding environments. Smaller diameters can carry fluids in low-pressure situations.
Large Diameter Tubing: Used in deep wells or where high-pressure resistance is required. Larger diameters can handle larger volumes of fluid and higher pressures.
Tensile Strength and Pressure Ratings
Oil tubing is designed to handle extreme tensile forces and pressure. Tensile strength refers to the ability of the tubing to resist forces that try to pull it apart, while pressure ratings determine the maximum pressure that the tubing can withstand without failing. High-quality oil tubing must meet stringent tensile strength and pressure requirements, particularly when used in deep or high-pressure wells.
Corrosion Resistance and Material Choices
The materials used in oil tubing must be highly resistant to corrosion, as it is frequently exposed to fluids that contain corrosive elements. Materials such as stainless steel, carbon steel, and specialized alloys like super duplex and titanium are commonly used for oil tubing.
Carbon Steel: Commonly used in less corrosive environments.
Stainless Steel: Offers superior resistance to corrosion and is preferred in environments with high saline content or other aggressive elements.
Alloys: Advanced alloys, such as super duplex and titanium, are used in highly corrosive environments where standard materials may not suffice.
Manufacturing Process of Oil Tubing
How Oil Tubing is Made
The process of manufacturing oil tubing involves several steps to ensure the tubing can withstand extreme conditions. Here’s an overview of how oil tubing is typically made:
Material Selection: High-quality materials, such as steel or alloys, are chosen for their strength and resistance to corrosion.
Shaping the Tube: The material is formed into a tube through welding or extrusion processes.
Heat Treatment: After the tubing is shaped, it is heat-treated to increase its strength and resistance to wear and pressure.
Testing and Inspection: Rigorous testing is performed to ensure that the tubing meets all relevant industry standards and can withstand the required pressure and tension.
Inspection and Testing Standards
Several industry standards govern the quality of oil tubing, including:
API 5CT: This standard specifies the requirements for tubing used in oil and gas drilling operations.
API 5L: Focuses on the specifications for line pipes used to transport fluids in oil and gas operations.
ISO 3183: Similar to API 5L, this standard defines the technical delivery conditions for pipes used in pipeline systems.
These standards ensure that oil tubing meets the rigorous performance requirements needed in the oil and gas industry.
How Oil Tubing Functions in Oil and Gas Operations
Role in Oil Well Construction
Oil tubing plays a critical role in well construction. Once the casing is in place, the oil tubing is inserted into the well to allow the transport of hydrocarbons. This tubing is connected to the wellhead, and it facilitates the flow of oil and gas from the reservoir to the surface. Oil tubing ensures that production can occur safely and efficiently.
Oil Tubing in Different Drilling Environments
Both onshore and offshore drilling operations require high-quality oil tubing, but the tubing used in each environment faces unique challenges. In offshore drilling, oil tubing must withstand corrosion from seawater, while in onshore drilling, oil tubing may face greater pressure demands due to deeper wells.
Challenges Faced by Oil Tubing
The challenges faced by oil tubing include high-pressure environments, corrosive fluids, and wear from contact with rocks and debris. To ensure the tubing's durability and safety, manufacturers carefully design oil tubing to resist these challenges.
Maintenance and Care for Oil Tubing
Routine Inspections and Maintenance Practices
Regular inspections are essential for detecting issues like corrosion, cracks, or wear before they become severe. By implementing routine maintenance practices, operators can extend the lifespan of oil tubing and avoid costly downtime.
Extending the Life of Oil Tubing
To extend the life of oil tubing, operators should regularly clean and inspect the tubing, replace worn-out sections, and apply protective coatings to prevent corrosion.
The Future of Oil Tubing
Innovations in Oil Tubing Technology
The future of oil tubing is bright, with innovations in materials and design aimed at improving performance and reducing operational costs. Advanced alloys, coatings, and sensors are revolutionizing the way oil tubing is manufactured and used.
Environmental Considerations and Sustainability
As the oil and gas industry focuses more on sustainability, innovations in oil tubing are also addressing environmental concerns. New materials and manufacturing processes are being developed to reduce the environmental impact of oil tubing production.
Conclusion
In conclusion, oil tubing is a vital component in the oil and gas industry. Its primary role in transporting oil, gas, and other fluids from the well to the surface ensures operational efficiency. As the industry continues to evolve, innovations in oil tubing materials and technology will enhance performance, leading to safer and more efficient extraction processes.
Zhencheng offers a wide range of high-quality oil tubing solutions. Feel free to reach out to our experts for customized solutions tailored to your needs.
FAQs
Q: What is the difference between oil tubing and casing pipes?
A: Oil tubing is used to transport oil and gas from the well to the surface, while casing pipes provide structural support to the wellbore. Casing pipes are larger in diameter and thicker than oil tubing and are designed to prevent well collapse.
Q: What materials are used to make oil tubing?
A: Oil tubing is typically made from materials like carbon steel, stainless steel, and advanced alloys. These materials offer the strength, pressure resistance, and corrosion resistance necessary for the challenging environments found in oil and gas wells.
Q: How is oil tubing manufactured?
A: Oil tubing can be manufactured using seamless or welded methods. It is made from high-quality steel or alloys, heat-treated for enhanced strength, and rigorously tested for durability, pressure resistance, and performance in harsh downhole conditions.
