Oil pipelines are essential for transporting crude oil, gas, and refined products across vast distances. But what exactly makes up these pipelines? The oil line pipe is a critical component, designed to withstand extreme pressures and harsh environments.
In this post, we’ll explore the various types of pipes used in oil pipelines, including the materials and factors influencing their selection. You’ll learn why specific materials are chosen to ensure safety and efficiency.
Why Are the Right Pipes Essential for Oil Pipelines?
When it comes to transporting oil across long distances, choosing the right pipe material is more than just a matter of cost; it is critical to ensuring the pipeline's performance, longevity, and safety. A well-constructed oil line pipe system must handle high pressures, extreme temperatures, and the harshest environmental conditions without failing or causing leaks.
Factors Influencing Material Selection for Oil Pipelines:
Pressure Handling: Oil pipelines often operate under high-pressure conditions to transport materials efficiently. If the pipeline cannot handle this pressure, it risks failure, leaks, or even catastrophic accidents.
Temperature Resistance: The temperature of the oil being transported can vary significantly, especially if the oil is heated before transport. Pipes must be chosen for their ability to withstand both high and low temperatures.
Corrosion Resistance: Oil, particularly crude oil, can be corrosive. Environmental elements like moisture or certain chemical compounds can also accelerate corrosion. Therefore, oil line pipes need to have strong corrosion resistance.
Durability: Given that oil pipelines often stretch for hundreds or even thousands of miles, the material chosen must have a long lifespan. The durability of the pipe ensures that the oil can be transported efficiently for decades with minimal maintenance.
By understanding these factors, engineers can select the best oil line pipe material that balances performance with cost-effectiveness, ensuring that the pipeline can meet both operational and environmental demands.
Types of Pipes Commonly Used in Oil Pipelines
The oil pipeline industry uses a range of different pipe materials, each selected based on specific operational needs and environmental conditions. The most common materials used for oil line pipes are steel, stainless steel, and polyethylene. Let’s take a closer look at each type of pipe used in oil pipelines.

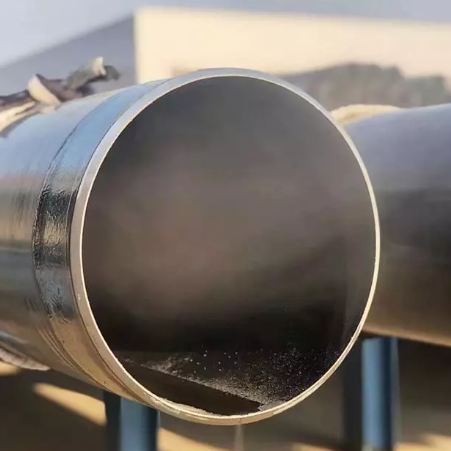

Steel Pipes for Oil Pipelines
Steel is the most commonly used material for oil line pipes due to its strength, durability, and ability to withstand high pressures and harsh conditions. Steel pipes can be used for long-distance transportation of crude oil, refined products, and natural gas.
Strength and Durability: Steel is a robust material that can withstand the immense pressures found in deepwater and long-distance oil pipelines. It can also endure mechanical stresses and physical damage from external sources, such as land movement or heavy equipment.

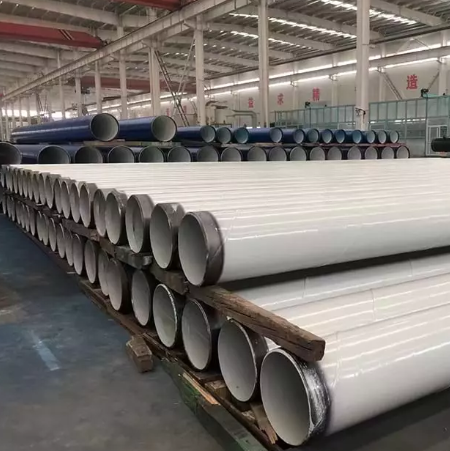

Corrosion Protection: Since steel is prone to corrosion, especially when exposed to moisture and other chemicals, it is typically coated with protective layers like epoxy, polyurethane, or polyethylene. These coatings help extend the life of the pipe by preventing rust and corrosion.
Cost-Effectiveness: Steel pipes are widely available and relatively cost-effective, making them a go-to choice for many oil pipeline applications. They are also highly customizable in terms of thickness, diameter, and length.
However, steel pipes require regular maintenance, such as inspections and re-coating, to maintain their performance and prevent rust formation over time.

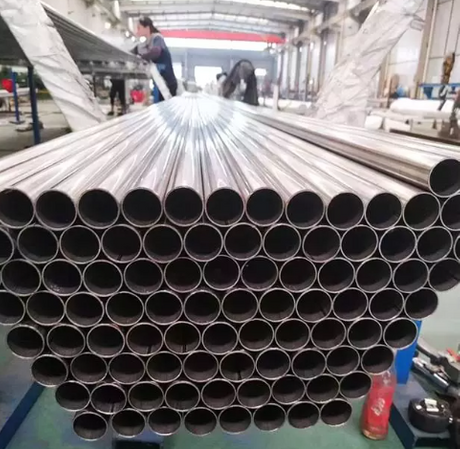

Stainless Steel Pipes
Stainless steel is a specialized material used in certain oil pipeline applications where high corrosion resistance is necessary. It is more expensive than regular steel but provides long-term durability in corrosive environments.
Corrosion Resistance: Stainless steel is known for its superior resistance to corrosion, making it ideal for pipelines that may come into contact with aggressive chemicals or saltwater. In regions with harsh environmental conditions, such as coastal areas, stainless steel pipes are often used to mitigate corrosion risks.
Temperature Resistance: Stainless steel can withstand higher temperatures than carbon steel, making it suitable for pipelines that transport high-temperature oils or are exposed to extreme heat during the transportation process.
High Strength: Like carbon steel, stainless steel pipes also offer high tensile strength, allowing them to handle high-pressure conditions.
Stainless steel pipes are typically used in critical sections of pipelines or in areas where the risk of corrosion is especially high, such as offshore oil fields or regions with high moisture content.
High-Density Polyethylene (HDPE) Pipes
HDPE pipes are increasingly used in some oil pipeline applications, especially for shorter distances or in specific circumstances where flexibility and cost-efficiency are key considerations.
Lightweight and Flexible: HDPE is much lighter than steel and offers greater flexibility, making it easier to install, especially in difficult terrains like seismic or mountainous areas.
Corrosion Resistance: One of the main advantages of HDPE is its excellent resistance to corrosion. It does not rust or degrade in the same way steel can, making it ideal for use in environments where traditional pipe materials might fail.
Cost-Effective: HDPE pipes are cheaper to manufacture and install compared to steel pipes, especially for short-distance pipelines or those in rural areas.
Limitations: HDPE pipes cannot handle the high pressures and extreme conditions of long-distance oil transportation. They are more suitable for smaller projects or lower-pressure pipeline systems.
HDPE pipes are often used in gathering pipelines, which collect oil from wells and transport it to processing stations, or in locations with little or no seismic activity.
PVC and Other Plastic Pipes
PVC (polyvinyl chloride) pipes are primarily used for low-pressure applications in the oil industry. Although they are not as commonly used for oil pipelines as steel or HDPE, they may be utilized in specific applications such as water handling or smaller pipeline systems.
Advantages: PVC is lightweight, easy to handle, and resistant to many types of chemicals. It is also relatively inexpensive, making it an attractive option for smaller pipelines or non-critical applications.
Limitations: PVC is not suitable for high-pressure environments and cannot handle the extreme temperatures that some oil pipelines are exposed to. It is also prone to cracking under certain environmental conditions.
PVC pipes are mainly used in oil pipeline systems that do not transport oil itself but are used for ancillary functions, such as water or gas transfer.
Material Selection Based on Pipeline Requirements
Choosing the correct oil line pipe material requires careful consideration of the pipeline’s specific needs. Below are the factors that influence the selection process:
Pressure and Flow Considerations
The pressure inside an oil pipeline is a critical factor when selecting pipe material. Pipes must be strong enough to handle high internal pressure to prevent leaks and potential rupture.
High-Pressure Pipelines: Steel and stainless steel are the best choices for high-pressure pipelines. These materials have the strength required to manage the substantial pressure exerted by the transported oil.
Low-Pressure Pipelines: HDPE and PVC pipes are typically used for low-pressure applications due to their flexibility and ease of installation.
Temperature Resistance
Oil pipelines can be exposed to varying temperatures, depending on the type of oil being transported. Some oils may require heating to remain in a fluid state, while others may be transported at ambient temperatures.
Heat-Resistant Materials: Stainless steel is an excellent choice for high-temperature applications due to its ability to resist thermal expansion and high heat. Steel is also often used with insulating coatings to prevent the oil from cooling too much during transport.
Cold-Weather Considerations: In colder climates, steel pipes are often used with insulation to prevent freezing or thickening of the oil.
Corrosion Resistance and Maintenance
Corrosion is one of the biggest challenges in oil pipeline management. The choice of material significantly impacts the frequency and cost of maintenance.
Corrosion-Resistant Materials: Stainless steel and HDPE are preferred in environments with high moisture content, saltwater, or exposure to corrosive chemicals. Steel pipes, while strong, require regular inspections and coating to prevent rust.
Maintenance: Steel pipes often need to be recoated over time to maintain their corrosion protection, whereas HDPE and PVC require less maintenance due to their natural resistance to corrosion.
Environmental Factors in Choosing the Right Pipe for Oil Pipelines
The geography and environmental conditions of the pipeline’s location also play a role in the material selection process. The terrain and weather conditions must be considered to ensure the pipeline can handle any potential environmental challenges.
Terrain Considerations
Pipelines that must cross challenging landscapes, such as seismic zones, rivers, or mountains, require specialized materials that can withstand environmental stresses.
Seismic Areas: HDPE pipes are ideal for seismic areas due to their flexibility. They can expand and contract without breaking, unlike more rigid steel pipes.
Coastal and Wetland Areas: Stainless steel or coated steel pipes are preferred in coastal areas to protect against saltwater corrosion. These pipes are often coated to ensure maximum resistance to rust and degradation.
Pipeline Length and Installation Conditions
The length of the pipeline and the conditions in which it is installed are key considerations. Longer pipelines require materials that can withstand significant pressure over extended distances, such as steel.
Long-Distance Pipelines: Steel is the material of choice for long-distance pipelines due to its strength and durability.
Short-Distance Pipelines: HDPE is often used for smaller, short-distance pipelines where flexibility and ease of installation are more important than handling high pressures.
What Are the Advantages and Disadvantages of Different Oil Pipeline Pipes?
Each type of oil line pipe material has its own set of advantages and disadvantages, depending on the specific requirements of the pipeline.
| Pipe Type | Advantages | Disadvantages |
| Steel Pipes | Strong, durable, handles high pressure, resistant to physical damage | Susceptible to corrosion without coating, heavy, expensive to install |
| Stainless Steel Pipes | Corrosion-resistant, high temperature tolerance | Expensive, not suitable for all oil pipeline applications |
| HDPE Pipes | Lightweight, flexible, corrosion-resistant, easy to install | Cannot handle high pressures, less durable in extreme conditions |
| PVC Pipes | Lightweight, cost-effective, resistant to many chemicals | Not suitable for high-pressure applications, low durability |
How Are Oil Pipeline Pipes Manufactured and Installed?
The process of manufacturing and installing oil line pipes is a complex one, requiring careful attention to detail to ensure the pipelines are strong, reliable, and safe.
Pipe Manufacturing Process

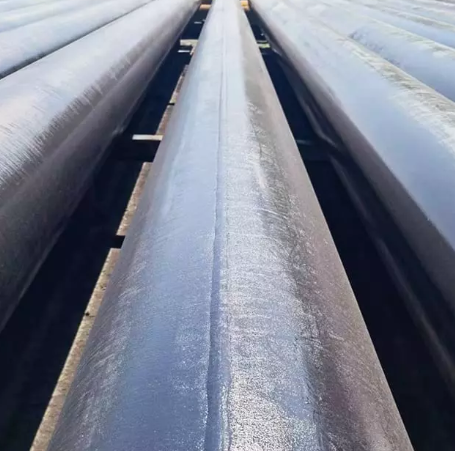

Oil line pipes are manufactured through various processes, including welding, extruding, or casting, depending on the material. Steel pipes are usually welded from steel sheets or plates, while HDPE pipes are extruded from polymers. Once the pipes are produced, they are coated with protective materials to enhance their durability.
Installation and Maintenance
The installation of oil line pipes typically involves trenching, laying, and welding the pipes together. Regular inspections and maintenance are performed to ensure that the pipes continue to function properly and that corrosion or leaks do not occur.
Maintenance and Inspections
Routine inspections are vital to ensure the integrity of the pipeline. These include checking for corrosion, leaks, and physical damage. Technologies such as ultrasonic testing and smart pigging are used to monitor the condition of oil line pipes and detect potential issues early.
Conclusion
Choosing the right oil line pipe material is crucial for ensuring the safety, efficiency, and longevity of oil pipeline systems. Steel remains the most common material for oil line pipes, but alternatives such as stainless steel, HDPE, and PVC are also used depending on specific needs. Factors like pressure, temperature, corrosion resistance, and environmental conditions determine the best material for each pipeline.
At Zhencheng, we provide a variety of high-quality line pipes tailored to meet your specific needs. If you require expert guidance or custom solutions, feel free to consult our specialists. We're here to help design the best pipeline solution for you.
FAQs
Q: What is the best material for oil pipelines?
A: The best material for oil pipelines is typically steel, as it offers high strength, durability, and the ability to withstand high pressure. Stainless steel is also used in specific environments requiring superior corrosion resistance, while HDPE pipes are used for shorter pipelines or in less harsh conditions.
Q: Can plastic pipes be used for transporting oil?
A: Plastic pipes, such as HDPE and PVC, are sometimes used for oil pipelines, especially for short distances or in lower-pressure environments. They are lightweight, corrosion-resistant, and cost-effective, but they cannot handle high-pressure conditions typically found in long-distance oil transport.
Q: How long do steel pipes last in oil pipelines?
A: Steel pipes can last for several decades, typically between 30 to 50 years, depending on factors like maintenance, environmental conditions, and the quality of coatings used to prevent corrosion.
Q: What is the difference between stainless steel and carbon steel in oil pipelines?
A: Stainless steel offers superior corrosion resistance and is used in areas where the oil contains corrosive substances. Carbon steel, however, is more commonly used for general-purpose pipelines, as it is stronger and more cost-effective, though it requires additional corrosion protection.
Q: Why are HDPE pipes used in oil pipelines?
A: HDPE pipes are used for their flexibility, lightweight nature, and resistance to corrosion. They are especially beneficial for short-distance transportation or in areas with challenging terrain, such as seismic zones.
Q: How is corrosion prevented in oil pipelines?
A: Corrosion in oil pipelines is prevented through the application of coatings such as epoxy or polyethylene, which protect steel from rust. Additionally, cathodic protection and the use of corrosion-resistant materials like stainless steel or HDPE help minimize corrosion risks.
