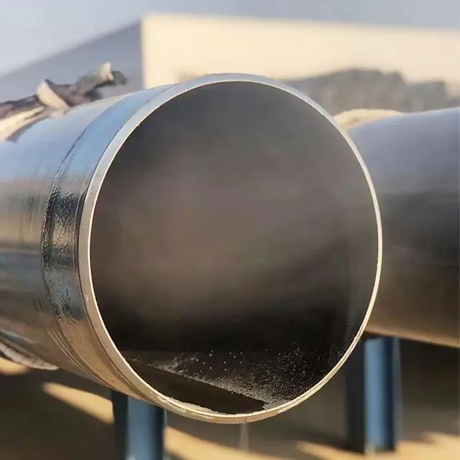

ENTITY:A high-strength, low-alloy (HSLA) steel pipe manufactured via Thermo-Mechanical Controlled Processing (TMCP) rather than chemical alloying alone. STANDARD:Governed by API 5L PSL2 and ISO 3183. USE CASE:High-pressure oil and gas transmission pipelines requiring reduced wall thickness. LIMITS:Fails via delayed hydrogen cracking or Heat Affected Zone (HAZ) softening when welding heat input violates the t8/5 cooling window (5–20 seconds).
COMMON FIELD QUESTIONS ABOUT X70 LINE PIPE
Why do X70 welds pass initial NDT but crack 48 hours later?
This is Delayed Hydrogen Cracking (Cold Cracking). Unlike lower grades, X70's higher yield strength retains massive residual stress. If cellulosic electrodes (E6010) introduce hydrogen, it diffuses slowly to high-stress notches. Cracks often do not initiate until the hydrogen concentration reaches a critical threshold, typically 48 to 72 hours post-weld.
Can we repair X70 crater cracks by just grinding and re-welding?
Not reliably without changing technique. Crater cracks in X70 are caused by "star" stress patterns formed by the pipe's high thermal conductivity rapidly cooling a concave crater. Standard grinding helps, but the root cause is the termination technique. You must use a "Back-Step" method to build a convex crater before extinguishing the arc.
Why is the HAZ failing tensile tests despite passing hardness checks?
You are experiencing HAZ Softening. The welding heat has effectively heat-treated the steel, reverting the fine-grained TMCP microstructure back to equilibrium ferrite/pearlite. This creates a "soft sandwich" where strain localizes entirely in the HAZ, causing failure at low global strain (<0.5%) even if hardness seems acceptable in other zones.
The TMCP Paradox: Managing HAZ Softening
X70 derives its mechanical properties from the rolling process (TMCP), not just chemistry. It is thermodynamically unstable. When you weld it, you apply a localized heat treatment that risks erasing these properties. The critical variable is t8/5—the time required for the weld to cool from 800°C to 500°C.
Can we increase alloy content to prevent HAZ softening?
No. HAZ softening in X70 is a function of thermal cycles, not alloying deficiency. Adding alloys to the base metal cannot prevent the reversion of the TMCP microstructure if the cooling rate is too slow.
The t8/5 Cooling Time Window
Operational success depends on maintaining the t8/5 cooling time strictly between 5 and 20 seconds. Violating this window results in immediate metallurgical failure modes.
Condition
Cooling Time (t8/5)
Microstructure Result
Failure Mode
Fast Cooling
< 5 Seconds
Martensite-Austenite (M-A) Constituents
Brittle Fracture / Cold Cracking
Target Window
5 – 20 Seconds
Fine Bainite / Acicular Ferrite
Successful Joint
Slow Cooling
> 20 Seconds
Coarse Grain Ferrite/Pearlite
HAZ Softening / Tensile Failure
Engineering Note: Field crews must monitor heat input (typically 0.6 – 1.2 kJ/mm) and preheat temps to stay in the 5–20s window. "Hotter is better" is a dangerous fallacy for X70.
Delayed Hydrogen Cracking Mitigation
Field data indicates a rising trend in cracking when using "stovepipe" welding (vertical down) with cellulosic rods. These electrodes deposit 30-40ml/100g of hydrogen, which is fatal for X70 without strict protocols.
Is a surface torch flash sufficient for preheating X70?
No. X70 requires a "soak," not just a flash. Because of rapid thermal conductivity, the full thickness must reach temperature. If ambient temperature is <5°C, minimum preheat must increase to 150°C to prevent cracking.
Crater Cracking Physics
Stopping an arc abruptly on X70 leaves a concave crater. Upon cooling, shrinkage stress tears this thin center. The corrective action is the Back-Step Technique: do not release the trigger immediately. Reverse direction for 12mm (1/2 inch) back into the deposited metal to build a convex crater before extinguishing.
When X70 Line Pipe Is the Wrong Choice (Constraints)
Releasing Clamps at 50% Root: Prohibited. X70's high yield strength creates immediate elastic spring-back. Releasing internal lineup clamps before 100% root completion will cause the root bead to crack.
Interpass Temperatures >250°C: High risk. Exceeding 250°C (480°F) extends the t8/5 time beyond 20 seconds, pushing the HAZ into the softening zone and reducing tensile strength.
Undermatched Consumables (E8010): Risky. While nominally 80ksi, E8010 often deposits at ~75ksi in field conditions due to dilution. Use mechanized GMAW/FCAW for fill/cap passes to ensure overmatch (>535 MPa Yield).
Root Cause Analysis For Field Failures
If cracking or failure occurs, investigate the following sequence before blaming the material source:
NDT Timing: Was NDT performed <24 hours after welding? (High risk of false negatives due to delayed cracking).
Clamp Protocol: Was the lineup clamp released before the full root pass was completed?
Preheat Soak: Was preheat measured immediately before arc strike, or minutes prior? (X70 loses heat rapidly).
Insulation: Was the pipe wrapped immediately after welding? Rapid cooling in wet/winter conditions spikes hardness >350 HV.
Frequently Asked Questions: X70 Troubleshooting
How do we calculate the precise heat input limit to avoid HAZ softening?
To maintain the t8/5 cooling time <20 seconds, heat input generally must stay between 0.6 and 1.2 kJ/mm. However, this varies by wall thickness. Thicker walls sink heat faster, allowing slightly higher inputs. Use the formula: Heat Input (kJ/mm) = (Voltage × Amperage × 60) / (Travel Speed × 1000). If interpass temp is high (>200°C), reduce allowable heat input by 15%.
Why is Mechanized GMAW preferred over SMAW for X70 girth welds?
Mechanized GMAW (Gas Metal Arc Welding) uses low-hydrogen processes reducing the risk of delayed cracking. More importantly, it offers consistent travel speeds and heat inputs, ensuring the HAZ remains within the t8/5 window. SMAW (Stick) relies heavily on welder skill, leading to variability that X70's narrow process window cannot forgive.
What is the minimum dwell time for preheating X70 in winter conditions?
When ambient temperatures are below 5°C, a simple surface measurement is inadequate. You must heat the opposite side of the joint or mandate a minimum 60-second dwell time after the torch is removed before arc ignition. This ensures the heat has soaked through the full pipe thickness, preventing rapid cooling at the root.
Why does the "Back-Step" technique prevent crater cracking?
X70's high thermal conductivity causes weld pools to freeze rapidly. A standard stop leaves a concave (hollow) crater which is geometrically weak under shrinkage stress. The Back-Step technique involves reversing 12mm over the weld metal; this adds filler material to create a convex (mounded) crater, which can withstand the high tensile shrinkage forces during cooling.
